Art of Battery Pack Assembly
Creating Power from Modules
The journey of a battery's transformation, from a collection of individual cells to a powerful energy source, involves several intricate steps. The assembly process is where the individual battery cells are ingeniously crafted into modules an eventually form a complete battery pack.

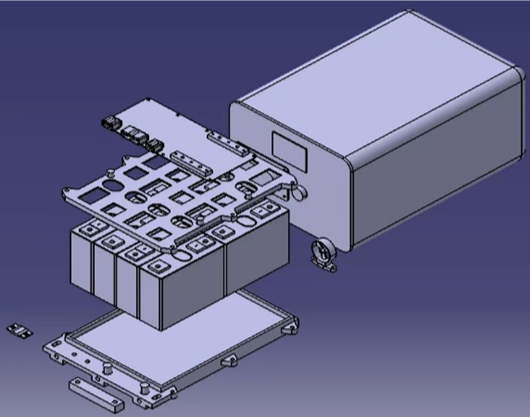

<< exploded view of the assembly battery pack design

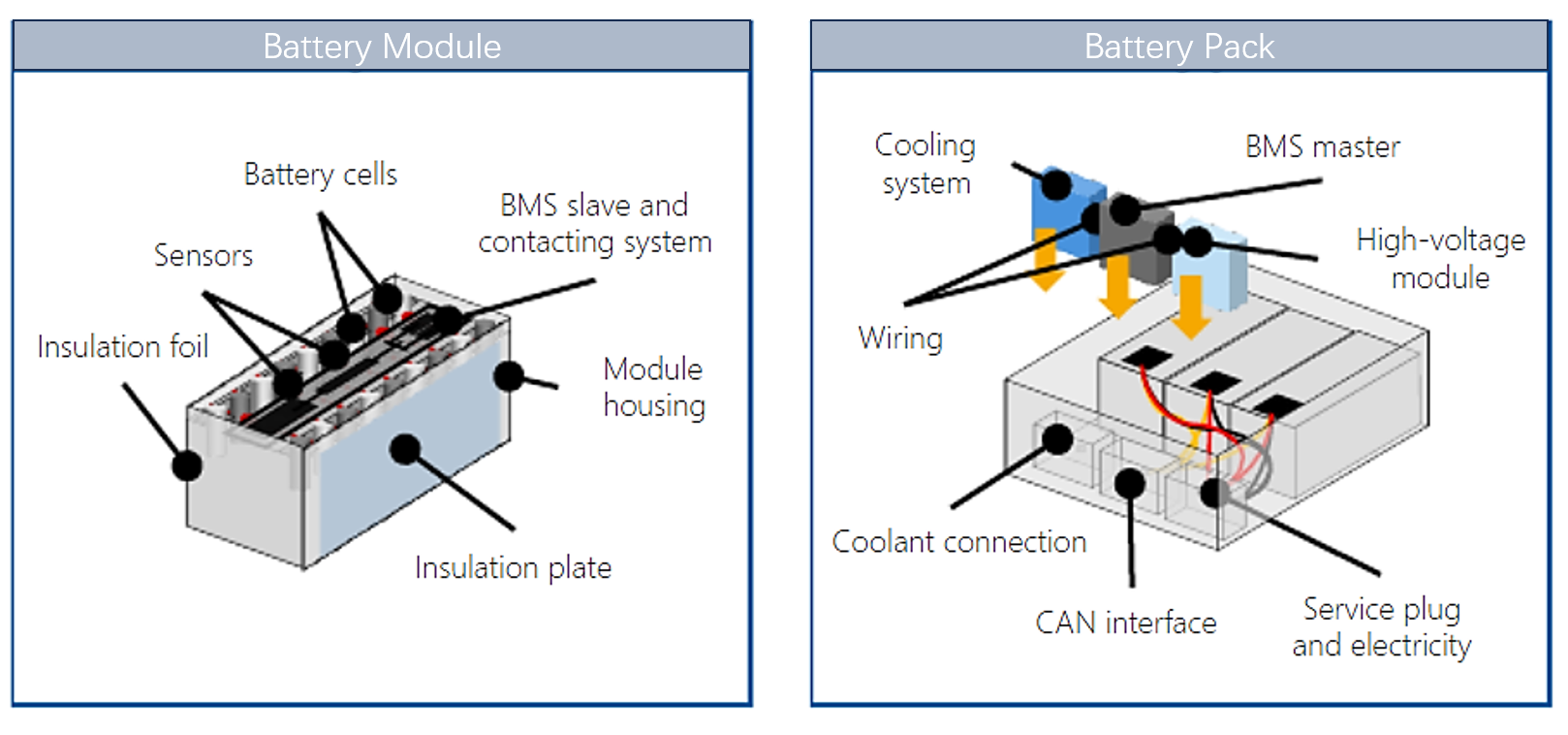

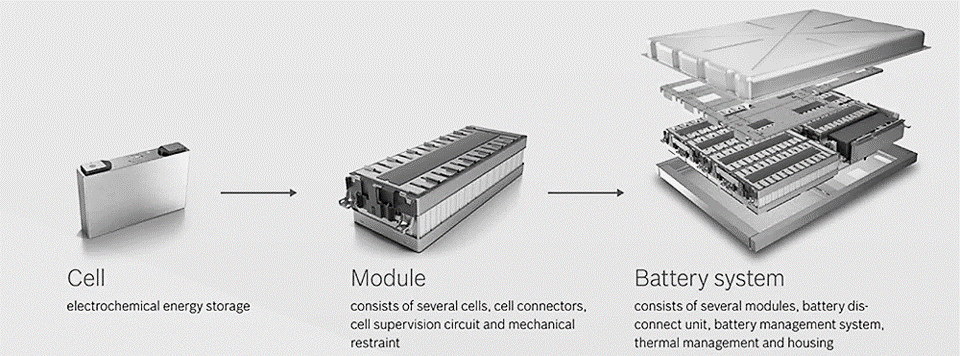

The individual cells are connected serial or in parallel in modules. Several modules as well as further electrical, mechanical and thermal components are assembled to a pack.
Connecting Cells
Choosing battery cells based on project requirements, considering factors such as voltage, capacity, size, weight, and chemistry (e.g., lithium-ion, nickel-metal hydride), inspecting each battery cell for damage or defects are important steps before assembly.
The initial stage of battery pack assembly begins with the careful connection of battery cells. Each battery cell's surface is meticulously cleaned to ensure a pristine connection. This connection process involves lining battery cells side by side, creating a structured arrangement. The configuration of these cells and the number of modules can vary significantly, depending on the specific application and battery model.
Battery cells are like the building blocks of energy storage. Their ability to store electrical energy makes them the core of the battery assembly process. Connecting them correctly is paramount in achieving the desired electrical performance.

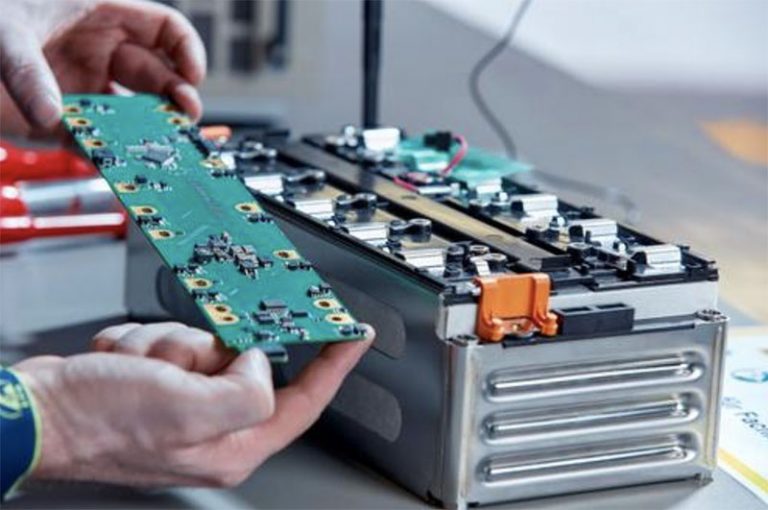

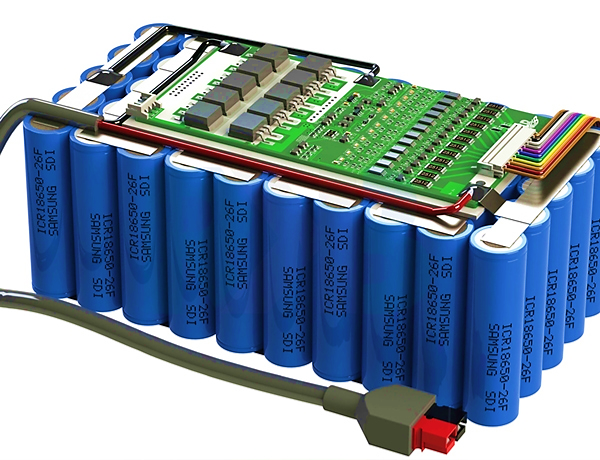

Role of Battery Management System (BMS)

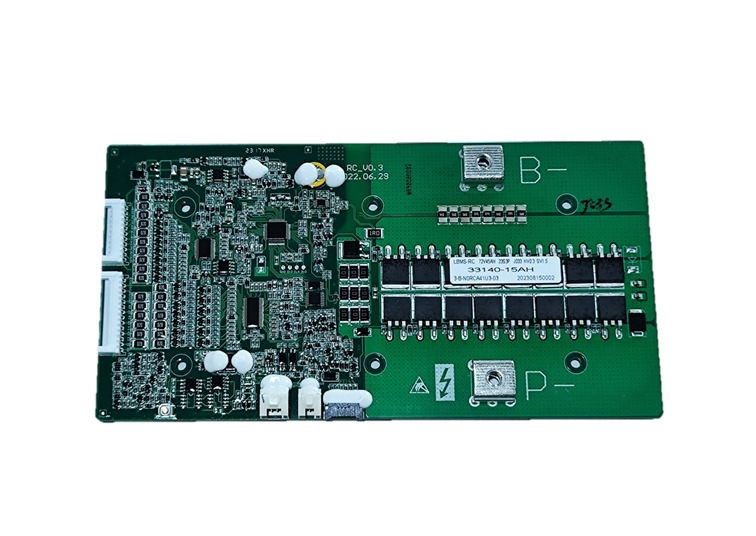

The battery management system （BMS） is on electronic component that monitor the battery pack and controls charging and discharging. Overcharging or completely discharging can shorten battery life or trigger dangerous thermal runaway conditions. The BMS should prevent overcharging. Many BMS also cut power before the battery is fully discharged in order to prolong like. Despite this, many e-bike riders still baby their batteries by never fully discharging them and also use special chargers to finely control. charging speed and amount.
More sophisticated battery management systems will also monitor the temperature of the pack. and trigger a cutoff if overheating occurs.

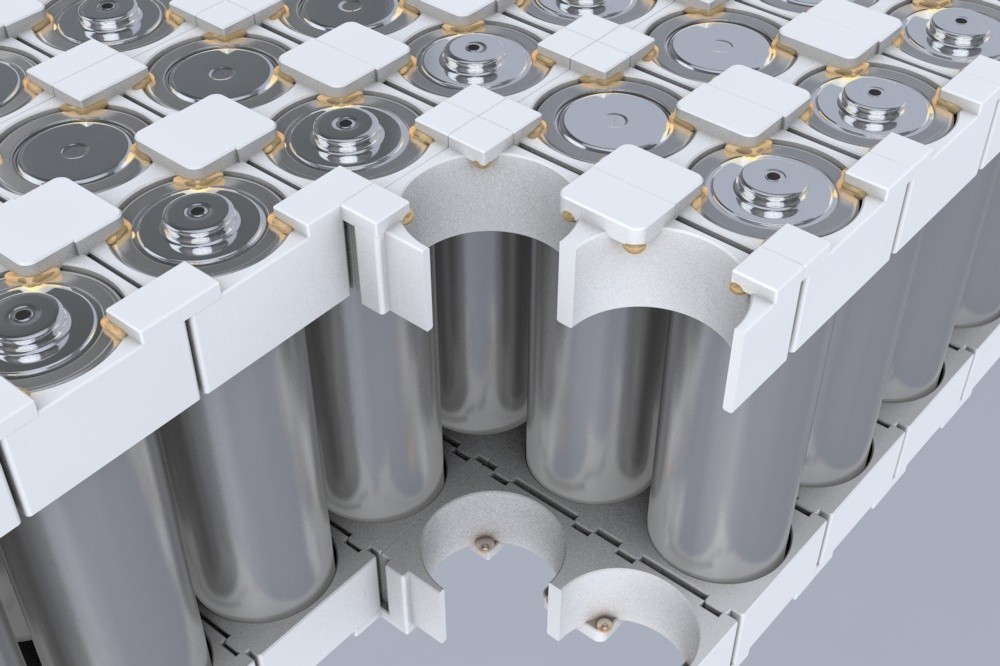

Modularization
Modularization in Li-ion pack assembly involves designing an constructing the battery pack in a way that individual components or modules can be assembled, disassembled, and replaced independently. This approach offers several advantages, such as ease of maintenance, scalability, and the ability to replace or upgrade specific components without affecting the entire system.
CUSTOM BATTERY PACKS
LI-ion Battery
LEP Battery

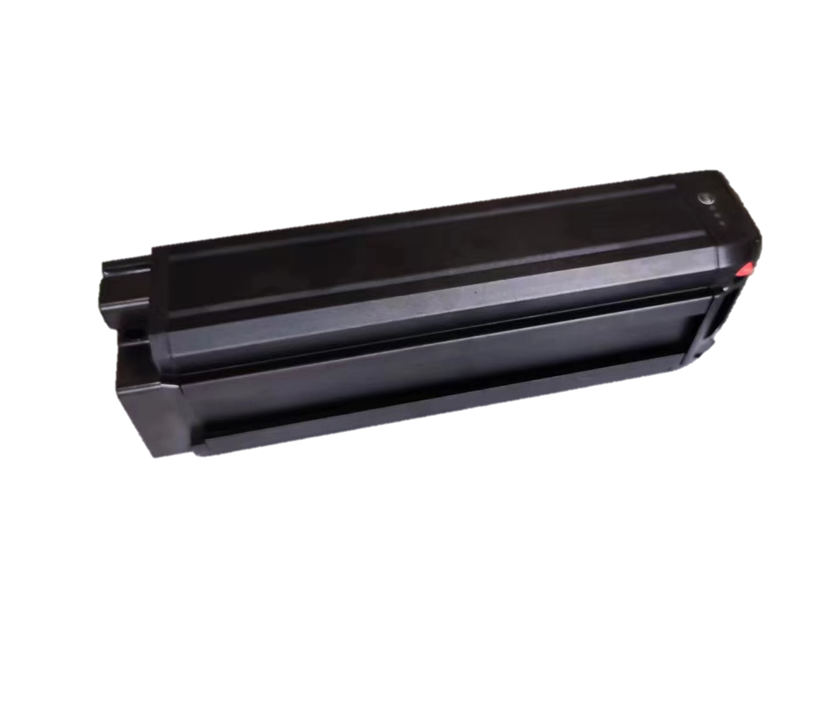

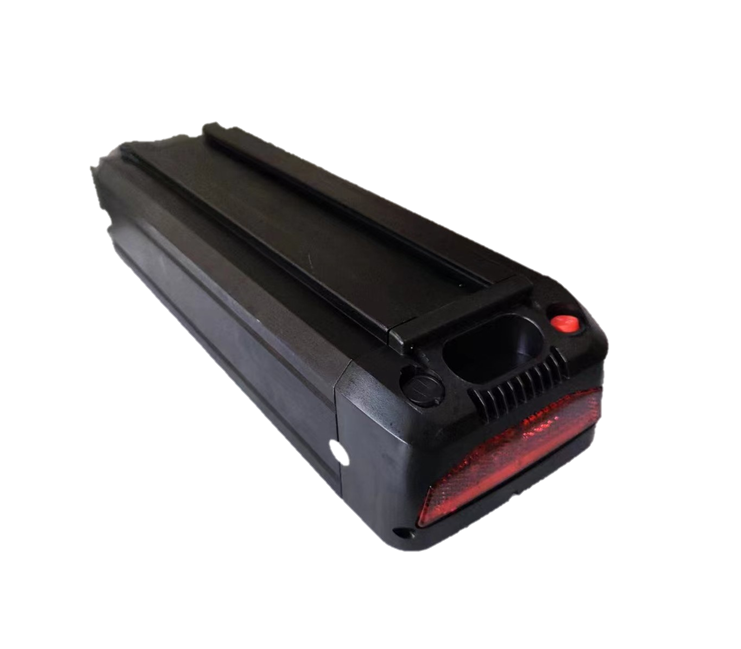

Battery Pack for Scooter

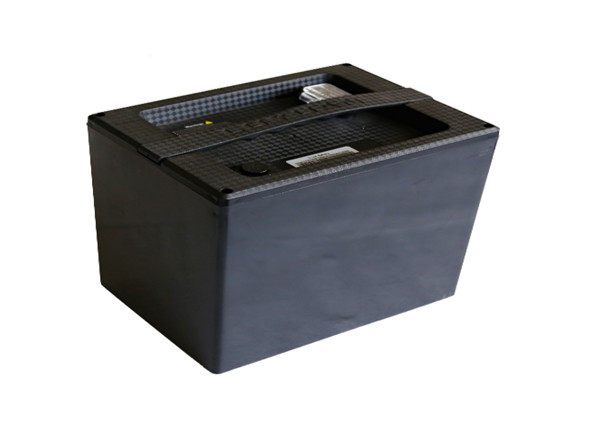

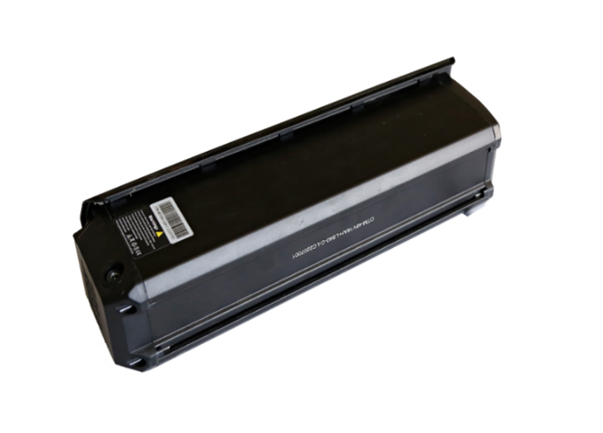

Battery in Bottle Shape

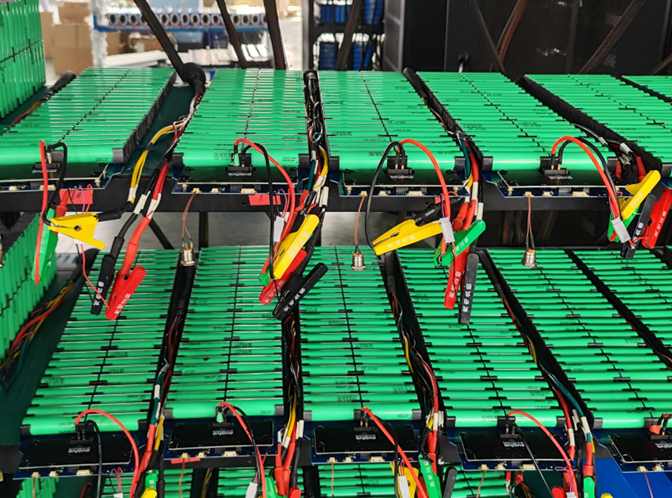

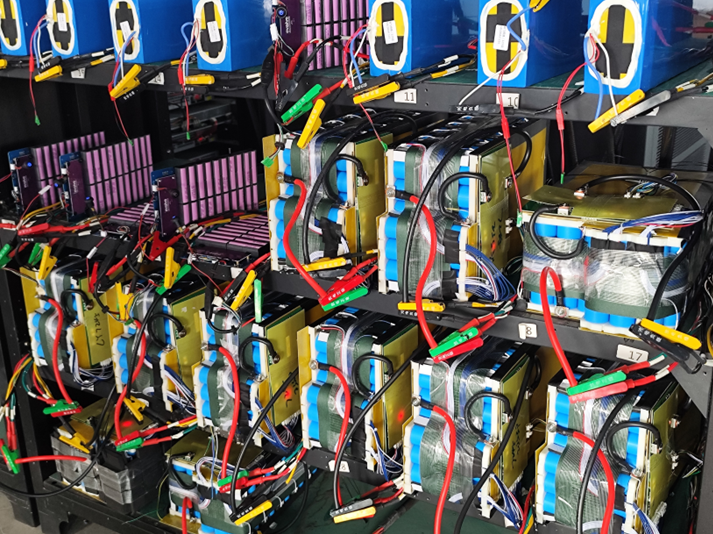

Picture2 and picture 3 indicate battery charging and discharging. A battery charging and discharging system involves the processes and compoenents responsible for supplying energy to a battery (charging) and extracting energy from a battery (discharging). The design and implementation of such systems can vary based on the type of battery, its intended application, and specific requirements.
BATTERY CAPACITY & VOLTAGE
48V10.5AH
E-BIKE BATTERY
60V40AH
E-MOTORCYCLE BATTERY
72V35AH
SUPER E-MOTORCYCLE
ENERGY STORAGE BATTERY SETS
Choose certified batteries will save more money and have safe identification.
Spot Welding Li-ion Battery Cells

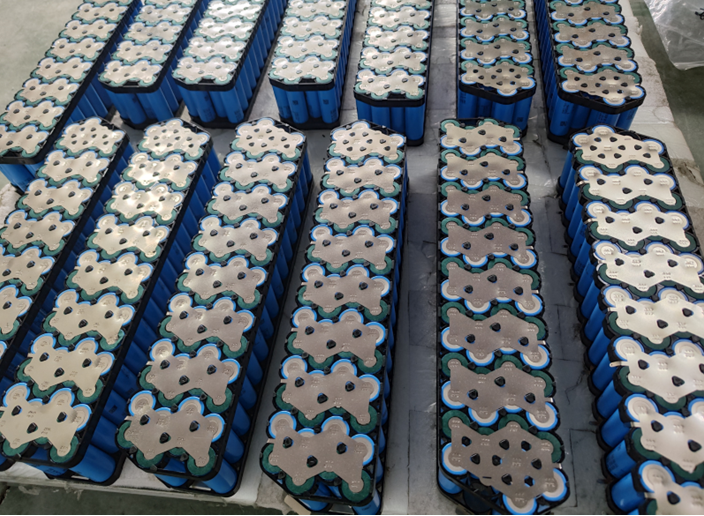

Wiring of the cells by electrical connection of the contact tabs/current collectors.
Depending on the module voltage, the cells are contacted to form one or more parallel stings.
Contact e.g. by the use of ultrasonic welding （low heat input),
laser welding （high precision） or screw connections （electrical losses due to contact resistances）.
Checking the joints for conductivity by resistance measurements.
With a high degree of automation, the welding seams can be inspected during the welding process by an optical inspection.

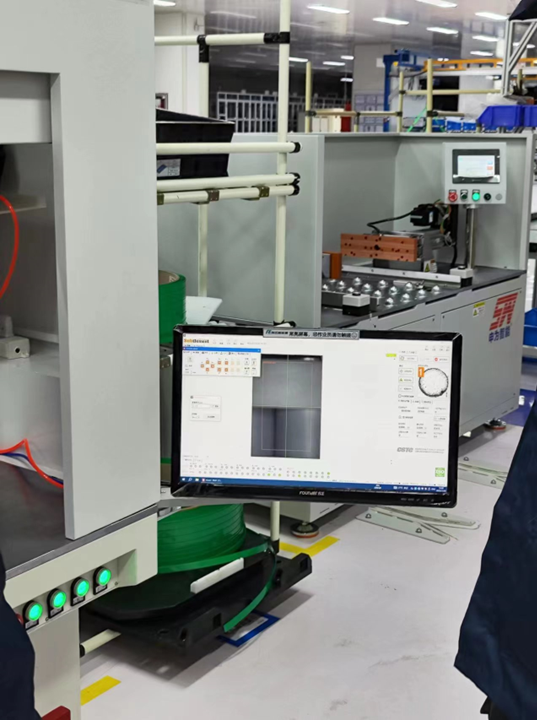

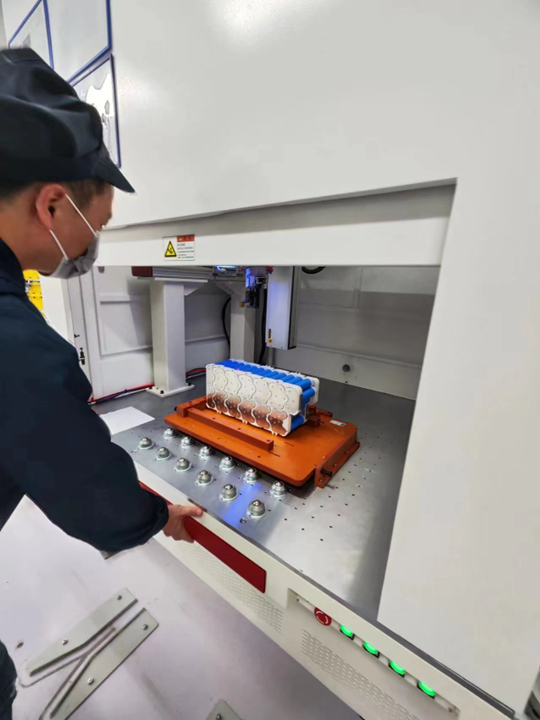

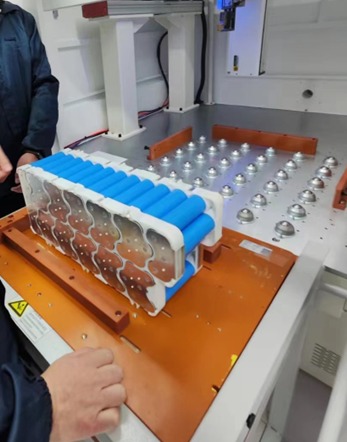

In the process of assembling batteries, spot welding is an important part. The pictures show workers operating welder machine and monitoring the procedure of welding.

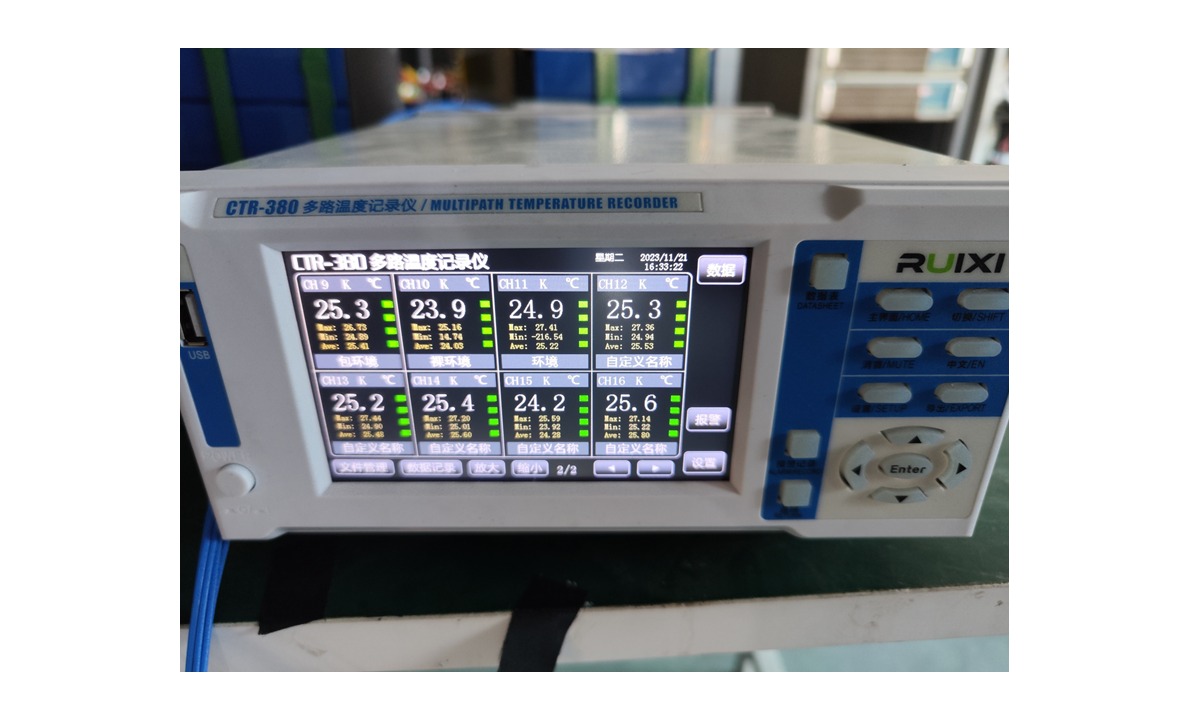

Battery Pack Life Testing
Clearly define the objectives of the battery pack life test. This may include determining the expected cycle life, capacity retention an safety performance over a specified number of charge-discharge cycles.
Determine the test conditions, including temperature, charging and discharging rates, and voltage limits. These conditions should replicate the expected operating environment of the battery pack.
Lithium-ion batteries have been used in different fields such as electronic devices, smart-home, transportation, etc.
Electric Scooter

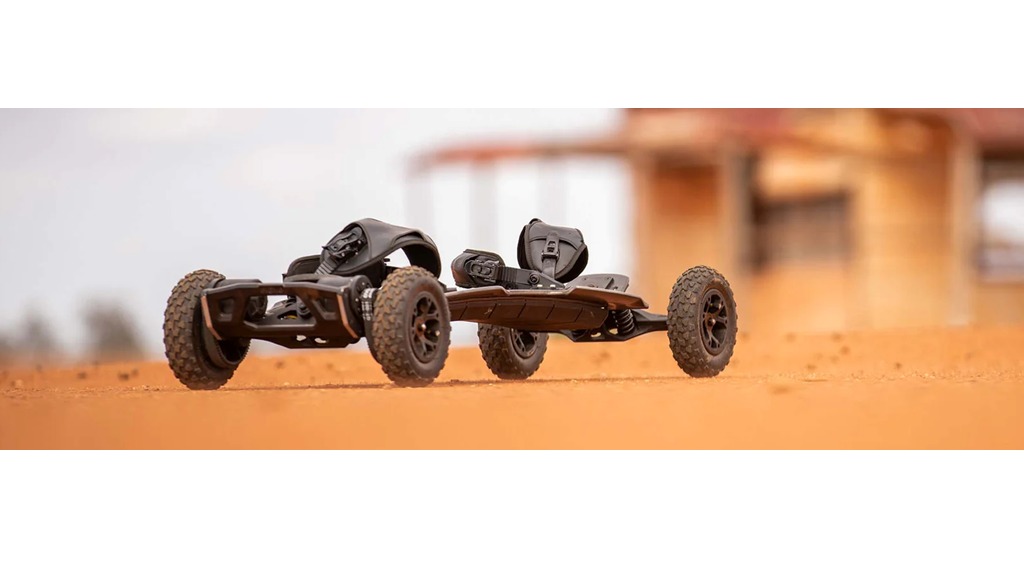

Battery Pack Assembly involves in trendy board sport.
Electric Bike
Pedelecs (e-bikes) use a combination of pedal power and electric assistance, and lithium-ion batteries played a significant role in providing the necessary power for these system.
