Model No: LCEB04
Electric bike ebike mountain bike urban terrain cycle

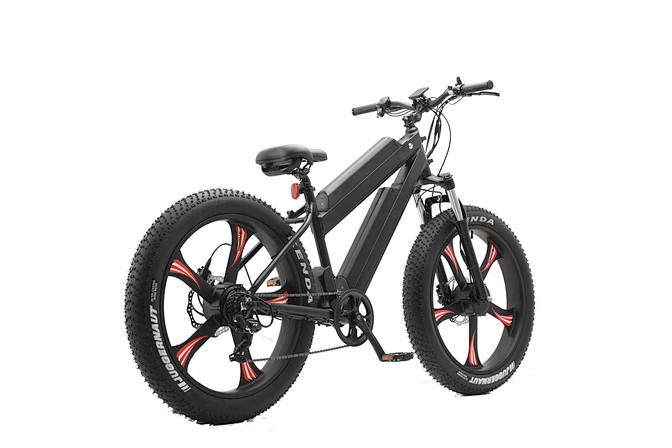

48V 350W Electric bike Spoke-less Bike Electric ebike factory
Frame: Aluminum alloy 6061

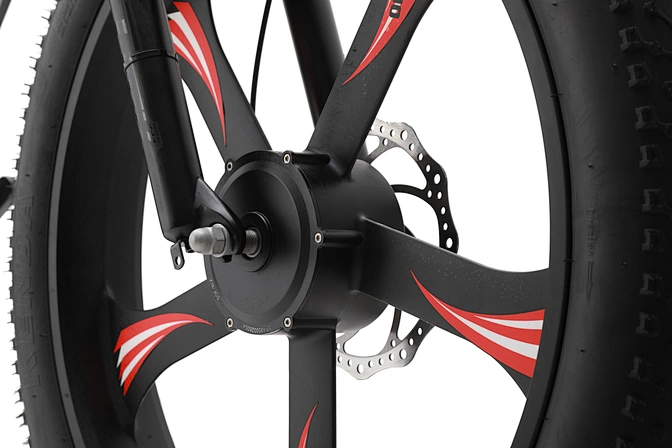

Motor: 48V350W Sofw Brushless hub Motor
Controller: 48V18A Sine Wave

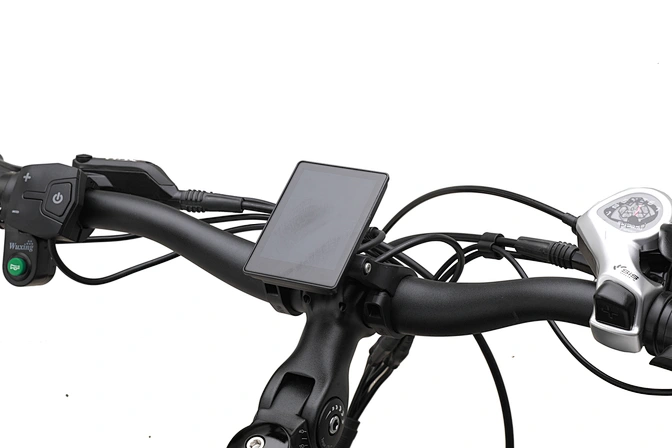

Display: K6MS LCD display With 5 level
Light: F& R LED headlights

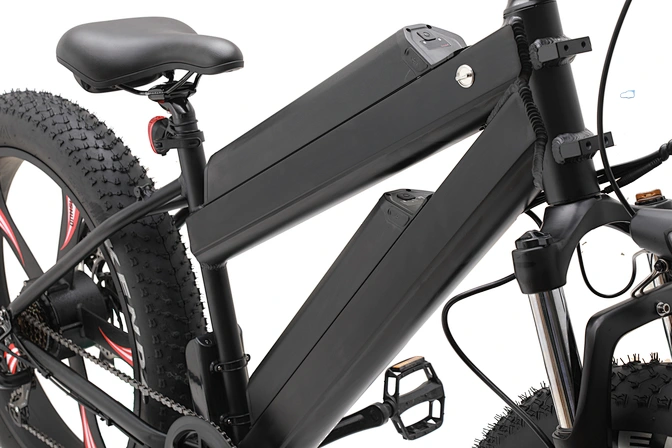

Battery: 48V 10AH*2 Dual batteries
Throttle: Witth WUXING Throttle
PAS : Speed Sensor
Brake: F& R XD-E500 Hydralic disc brake
Deraillurer: Shimano 7 Speed
Fork : Suspension Fork With Hydraulic lockout
Wheel size: F & R KENDA K1188 26*4.0"
Max.speed: 25kmh
E-bike
e bike mountain bike
electric bike dirt bike
urban terrain cycle
electric bike e bike
Frame: Aluminum alloy 6061
Motor: 48V350W Sofw Brushless hub Motor
Controller: 48V18A Sine Wave
Display: K6MS LCD display With 5 level
Light: F& R LED headlights
Battery: 48V 10AH*2 Dual batteries
Throttle: Witth WUXING Throttle
PAS : Speed Sensor
Brake: F& R XD-E500 Hydralic disc brake
Deraillurer: Shimano 7 Speed
Fork : Suspension Fork With Hydraulic lockout
Wheel size: F & R KENDA K1188 26*4.0"
Max.speed: 25kmh
E-bike
e bike mountain bike
electric bike dirt bike
urban terrain cycle
electric bike e bike
minimum order :
5
Quantity :
Subscribe to our Newsletter
- Min. Order:5
- Color:customized
Electric bike
| Motor Type | SOFW HUB MOTOR |
| Motor Power | 48V350W |
| Controller | 48V18A sine wave |
| Display Board | K6MS LCD display/5 level |
| Light | LED headlights |
| Battery | 48V 10AH*2 (Tesson 2500mah cell) |
| Charger | 54.6V 2A (UL certificate) |
| Throttle | WUXING 130X (LH) |
| PAS Sensor | Speed sensor(left hidden dual Hall sensor) |
| Brake | XD-E500 Hydralic disc brake |
| Derailleru | Shimano TX50-7/trigger shifter |
| Fork Suspension | Suspension Fork With Hydraulic lockout |
| Wheel/rim size | KENDA/K1188 26*4.0" |
| Max.speed | 150km/25kmph by PAS |
| Range/Speed 2 | 90km/25kmph by throttle |
| Range | |
| UPHILL | |
| Loading | 75-100kgs |
| Frame material | AL6061 |
| Body Size | 1950*690*1180mm |
| FOLDING SIZE | |
| Wheelbase | 1230mm |
| Net /G.W. Weight | 24-28kg |
| Battery Weight | 6kgs |
| Color option | Black or custom |
| Packing size | 1930*260*1100mm |
| Container QTY | 56pcs/168pcs |
| Front Chainring | POR-E48P-3/32"*48T*170mm |
| Chain | KMC |
| Handlebar & Stem | PROMAX/HB-3188/MA-593S |
| Seat post | TTZ041/KC88G quick released |
| Seat | |
| GRIP | |
| Pedal | JJ YK-13 |
| kickstand | Aluminum alloy side brace |
| Accessories | simple tools |
